Duonix Bike-Scan 2 Pro diagnostic device for BMW with OBD-2 diagnostic cable

Diagnostic device for motor vehicles and motorbikes. A diagnostic system with an intuitive and easy-to-understand user interface in 10 languages. The simple symbol-based menu structure helps the user to complete his tasks quickly and reliably. The extensive functions and special features provide the user with a unique diagnostic system. It is impossible to imagine a modern car / two-wheeler workshop without this diagnostic device.

Supported control units:
Engine electronics / engine control unit CDI
Central electronics / chassis electronics BCM
Instrument cluster / speedometer
Tyre pressure monitoring RDKS
ABS - anti-lock braking system
Anti-theft alarm system / Alarm system
Radio / Multimedia
Radio control unit
Electric Hydraulic Tilt Stand
Battery Management System BMS
Integrated Supply Control Module ICSM
Electric power steering EPS
Electronic power throttle EPT
Exhaust flap control FCE
Keyless GO System
Headlights LED
Automatic gearbox / transmission control
Traction control
Airbag

Diagnostic functions / diagnostic options:
Service reset / Service reset / DESMO / Oil
Read and delete fault memory completely
Key programming
Set injection system
Unlocking the immobiliser
Throttle valve setting / adaptation
Date and time setting e.g. after battery replacement
Reset adaptation values
Specific actual/target values / live data
Read current KM and software
Read out chassis number
Valve clearance service reset
Bleed ABS pressure modulator / Bleed test from ABS hydraulic system
Brake wear indicator Initialise
Windshield calibration
ESA/SAF shock absorber calibration
Stepper calibration
Calibration of height sensor, windshield, idle speed adjuster, foil sensor etc...
Calibration of sensors e.g. exhaust flap, interference tube flap, reversing aid setting, drive value sensor, gearbox, idling actuator, lambda sensors etc...
Actuator diagnostics e.g. fan, injection nozzle, valves
Tyre pressure sensor RDC teach-in - programming - initialisation
No limitation or restriction to models

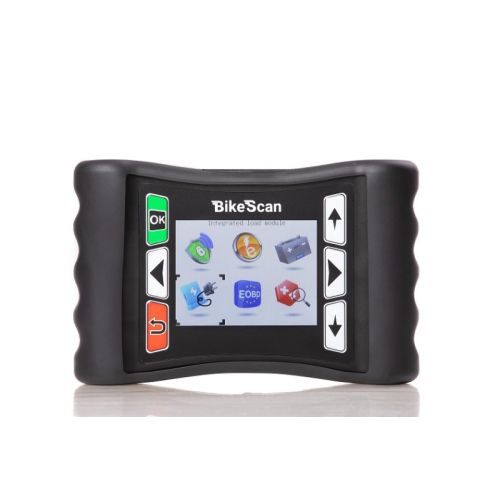

Technical features:
3.5-inch IPS colour display with high resolution
Robust housing with ergonomic handles
Graphical user interface via clear icons
Long metal dome keys on membrane keypad
Rubber-protected housing
Battery-free operation, power supplied by the machine
Update via USB-C standard cable
Software updates automatically via Windows software
Dimensions L/W/H 17x11x4cm Weight 300g


Special functions: *
Service reset date / way
Date and time setting e.g. after battery change
Reset of the adaptation values for the engine control unit
Specific ACTUAL values
Reading the current KM
Read out chassis number
Valve clearance service reset
Bleed ABS pressure modulator
Calibrate idle speed adjuster
Brake wear indicator Initialise
Windshield calibration
ESA/SAF calibration
Stepper calibration
Calibration: Height sensor, windshield, idle speed adjuster, foil sensor etc...
Calibration of sensors: Exhaust flap, interference tube flap, reversing aid adjustment, drive value sensor, gearbox, idle speed actuator, lambda sensors.
Actuator diagnostics
No limitation or restriction to models

*(These functions are not available for all models, engine variants and ECUs).

Supported protocols:
KWP-2000 Specific
CAN- BUS Specific
UDS Specific


Which models are supported?
All BMW models from Euro 4 onwards are equipped with the OBD-2 connector. Approx. from 08.2016

M1000RR
S1000RR
R1250RS
K1600GT
K1600GTL
K1600B
K1600 Grand America
R1250 RT
S1000R
R1250R
F900R
G310R
R18
R nineT / Pure / Urban
Scrambler
R1250GS
S1000XR
F900XR
F850GS
F750GS
G310GS
C400

Supported control units:
Engine electronics from Motronic 2.4
Central electronics
Instrument cluster
Tyre pressure monitor
ABS Anti-lock Braking System from I-ABS
Anti-theft alarm system
Radio
Function satellite
Active headlights
ESA Electric suspension adjustment
SAF semi-active suspension
Access system
Telematics Module
Audio platform
Body Controller
Sideview Assist
Chassis Electronics
Electric hydraulic tilt stands

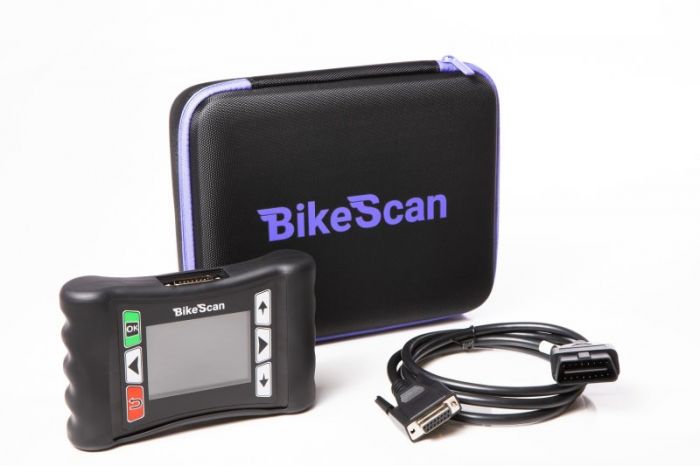

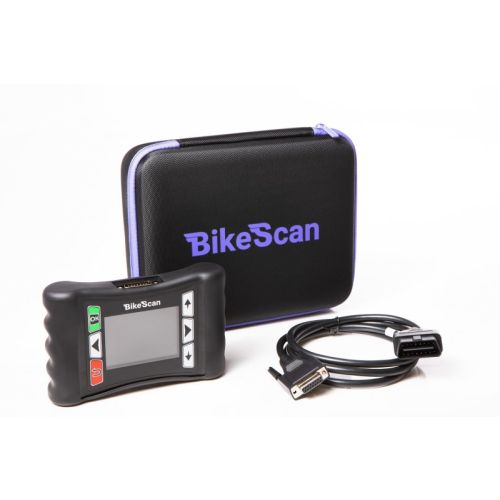

Scope of delivery:
Diagnostic device incl. 1 licence for BMW, OBD-2 diagnostic cable, manual and bag.
